Description
EMS Medium Enterprise

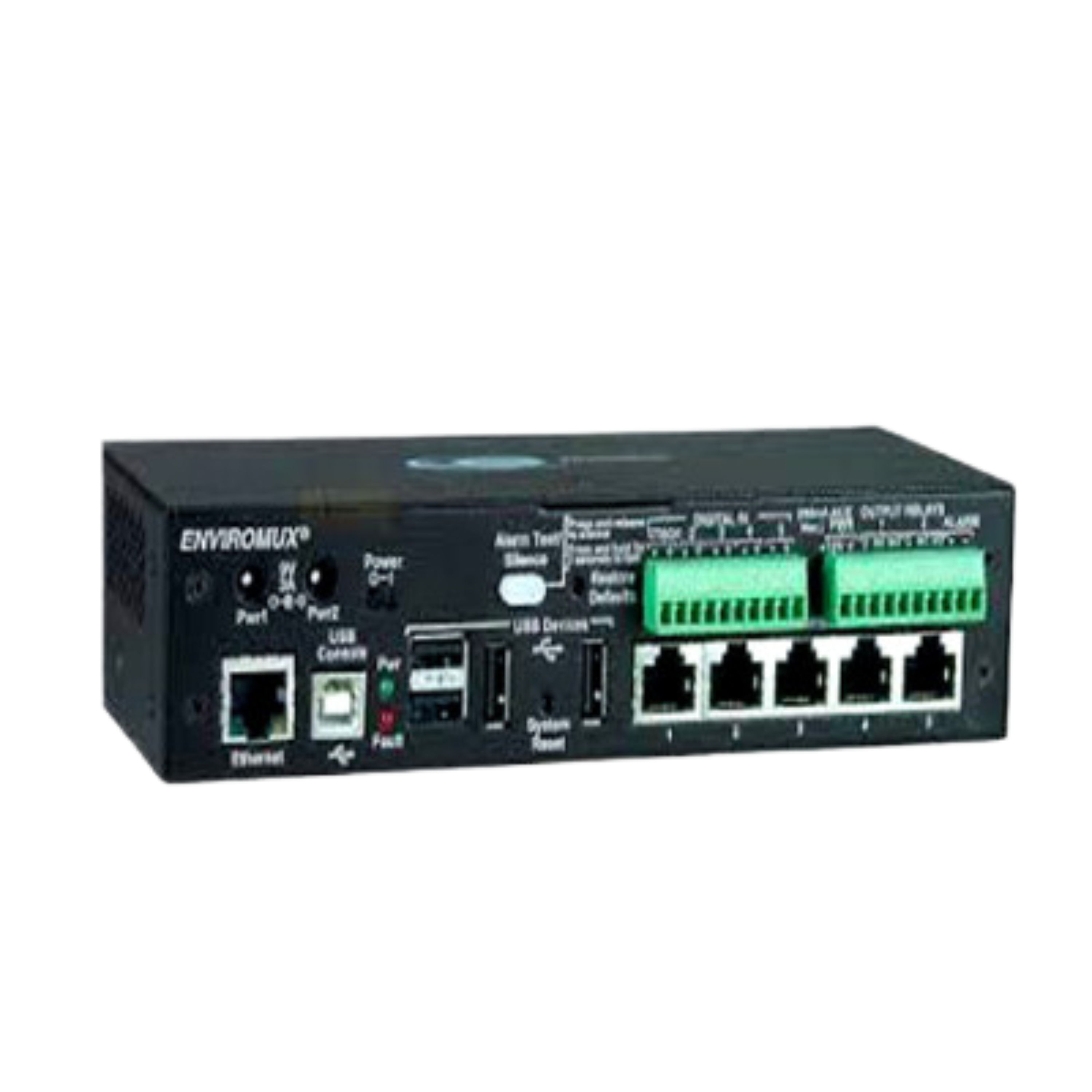

Environment Monitoring System, E-5D, ENVIROMUX-5D
QUICK OVERVIEW
Medium Enterprise Environment
Monitoring System, E-5D, ENVIROMUX-5D,
Monitor and manage server room
environmental and security conditions over IP. Provides early warnings before
critical events turn into disaster.
Also known as: Remote Server
Environment Monitoring System, EMS, monitor network closet, data center
thermometer, web alert thermometers temperature humidity IP sensor reading,
computer rooms temperature alert, tcp/ip temp probe.
Monitor and manage server room
environmental and security conditions over IP.
Sensors supported by a single
E-5D:
5 external configurable sensors
5 digital inputs sensitive to
contact closure
2 internal sensors – temperature
and humidity
8 Remote Temperature/Humidity
Sensors over IP
E-MICRO-TRH(P): 1 integrated
temperature/humidity combination sensor, 2 RJ45 ports for external
temperature/humidity sensors, 2 digital inputs sensitive to contact closure,
optional built-in Power over Ethernet (POE), dual DC power.
4 Remote 1-Wire Sensors over IP
E-1W(P): two RJ11 connectors for
daisy chaining many 1-wire temperature/humidity/dew point, thermocouple, or
digital input expanders in any combination (up to 24 single-reading 1-wire
sensors); two digital inputs sensitive to contact closure; dual DC power;
optional Power over Ethernet (POE).
Use an RJ45 RS485 Sensor Expander
to add 8 RJ45 RS485 sensors.
Use a Digital Input/Output
Expander to add 16 digital inputs and 16 digital outputs.
Two output relays for control of
external devices.
Relay activates upon alarm or via
the user interface.
Control output relays via SNMP
SET commands to power on/off external devices.
Supports NTI's IP network video
cameras for live view of any facility.
One integrated view – see
different Web cameras side-by-side with physical and environmental parameters.
Any programmed event can trigger
a snapshot from an IP camera.
