Description
Quick Overview

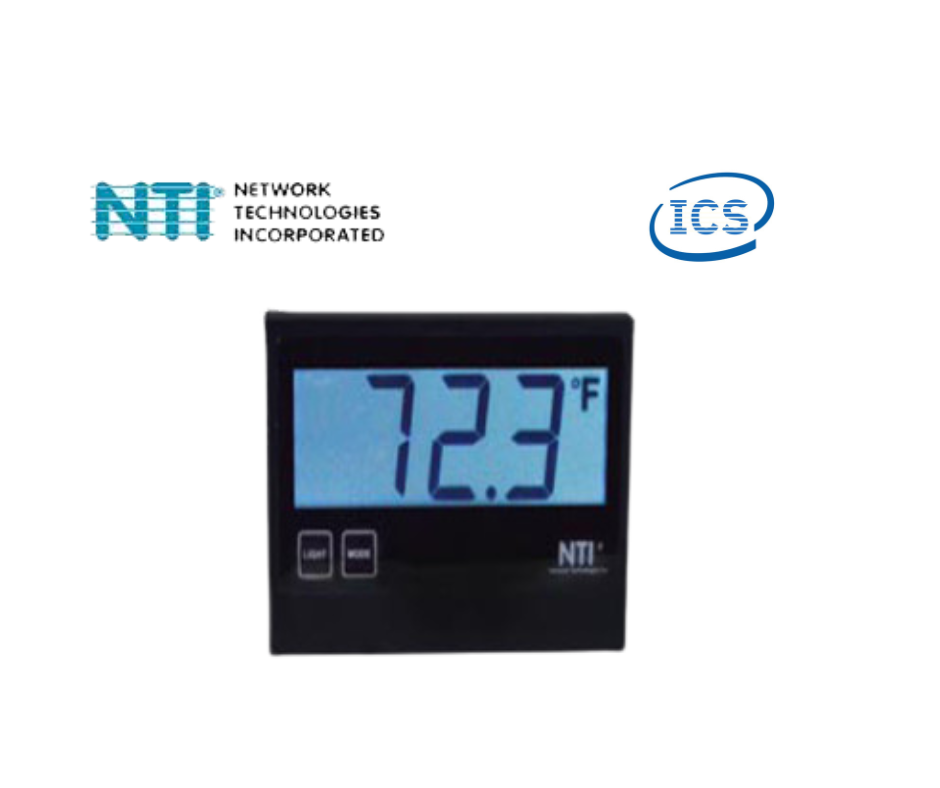

Temperature/Humidity Sensor with 3-Digit
7-Segment LCD Display – 2" Character Height
E-STHS-LCDW
Use to detect and view real-time value of the sensor's temperature
or humidity reading.
Three-digit, seven-segment display with °F, °C and % indicators.
Character height: 2 in (50mm).
LCD display window dimensions WxH: 6.88x2.29 in (175x58mm).
Use the touch-sensitive Mode button on the LCD display to
alternate between temperature and humidity.
Use the touch-sensitive Light button to activate an LED backlight
for a clear view in dark environments.
Applications from -4 to 140°F (-20 to 60°C) and 0 to 90%
non-condensing relative humidity.
Temperature accuracy:
±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
Humidity accuracy (at 77°F/25°C):
10 to 80% relative humidity: ±4%
20 to 80% relative humidity: ±3%
80 to 90% relative humidity: ±4%
Wall mountable.
Dimensions WxDxH: 8x1.03x5.4 in (203x26x137 mm).
